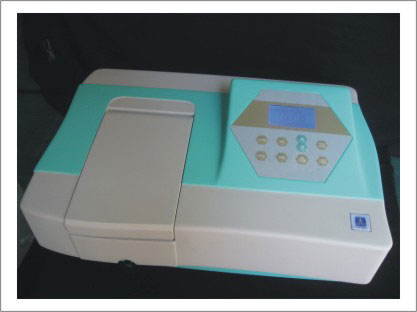

- UV/Visible Spectrometer Model UV-BT 610



UV-BT-610 is an advanced and affordable system that generates accurate and reproducible measurements for qualitative and quantitative analyses. The wide path length and optional accessories make them ideal for university, water and wastewater labs, Environmental protection, agricultural, petroleum industries and other fields of quality control and research.

UV-BT-610 most valuable instrument with highest cost effective with large LCD screen which is enough to read from any distance.

UV-BT-610 has built-in RAM helps to store and reload more then 195 standard curves and 495 test data results.

UV-BT-610 design is convenient to change lamp easily without and further alignment and extend the lifetime of the Deuterium lamp and tungsten lamp by turned on /off individually.

UV-BT-610 a variety of optional accessories such as 5-100mm path length glass cuvettes with optional holder can be accommodating in a large sample compartment

V-BT-350 is compatible with windows based software can help user to expand the application to standard curves and Kinetics.

Optional software UV-Brite can expand the applications to Kinetics and Quantitative make the instrument very versatile


Four Modes:

1- T Mode: Continuously measure the Transmittance of samples
2- A Mode: Continuously measure the Absorbance of samples
3- C Mode: Standard Curve method can use at most 9 standard samples to create a new standard curve, and to measure the unknown samples by the new one.
4- F Mode: Coefficient Method Input the known K and C to measure the unknown concentration samples.








Specifications:

Wavelength Range

Spectral Band Width

Wavelength Accuracy

Wavelength Reproducibility

Wavelength Setting

Photometric System

Photometric Accuracy

Photometric Reproducibility

Photometric Display Range

Stability

Stray Light

Data Output Port

Light Source


Detector

Grating

Sample Compartment

Software

Demension

Weight

200-1000nm

2nm

±2nm

1nm

Auto

Single Beam

±0.5%T

0.3%T

0-200%T, -0.3-3.0A, 0-9999C

0.002A/h @ 500nm

=0.3%T@220nm, 360nm

USB Port & Parallel Port(Printer)

Deuterium Lamp & Tungsten Halogen Lamp

Silicon Photodiode

1200 lines/mm

4 Positions 10mm cell changer

optional

440mm x 300mm x 200mm

15 kg
